Carbon fiber has become common in industries that require high strength-to-weight ratios. Its exceptional properties make it suitable for creating lightweight yet strong components. However, these same properties also pose significant challenges in machining. The abrasive nature of carbon fiber can quickly wear down tools. Also, improper cutting techniques can damage the material, such as delamination.

As the demand for precision-cut carbon fiber components grows, the question arises: Can a CNC router effectively cut carbon fiber? The CNC router is versatile and widely used in various manufacturing processes. This article explores CNC routers’ capabilities in machining carbon fiber, tips for cutting carbon fiber with a CNC router, and advantages.

Can a CNC Router Cut Carbon Fiber?

Yes, a CNC router can cut carbon fiber. However, specific attention to detail and the right setup are required to achieve a suitable results. Carbon fiber is a material known for its high strength and low weight. However, these same properties that make carbon fiber so valuable also make it challenging to machine. The abrasive nature of carbon fiber can quickly wear down cutting tools. Without the proper techniques, the material is prone to issues such as delamination and frayed edges.

One key consideration when using a CNC router to cut carbon fiber is the choice of cutting tools. Standard cutting tools may not be suitable for this material due to its toughness and abrasive fibers. Instead, specialized tools such as diamond-coated or carbide-tipped end mills are recommended. These tools are built to withstand the wear and tear caused by carbon fiber. Thereby ensuring a cleaner cut and a longer tool life. The right tooling is essential to avoid premature failure and maintain the cut’s precision.

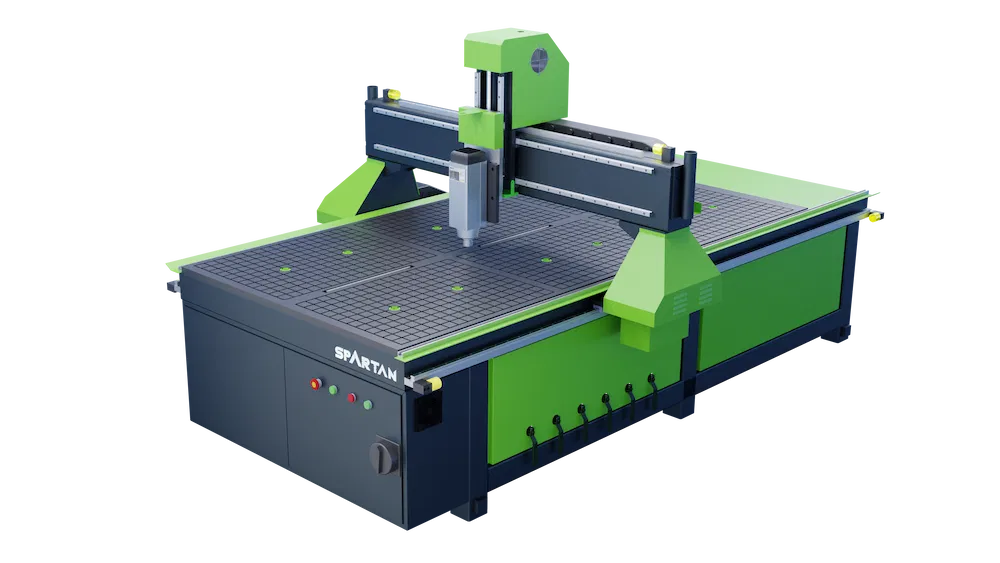

CNC Router

A CNC router is a computer-controlled cutting machinery widely used in manufacturing to shape, cut, and carve various materials with high precision. The router’s movements are controlled by a computer program, allowing complex designs to be executed precisely and accurately. CNC routers are commonly employed to work with wood, plastic, aluminum, and other softer materials. However, with the right setup, they can also be used to machine more challenging materials, such as carbon fiber.

The design and functionality of CNC routers make them a better option for manufacturers looking to automate their production processes. These machines can operate in multiple axes, typically three to five. This enables them to create complex shapes and cuts that would be difficult to achieve manually. CNC routers are also useful for replicating the same design multiple times with exacting accuracy, which is particularly beneficial in mass production.

Precision and control are important when cutting carbon fibre using a CNC router. The machine’s ability to follow complex pathways and maintain constant cutting parameters reduces material damage risk. Furthermore, CNC routers’ programmability enables simple modifications to cutting speeds, feed rates, and tool trajectories. This ensures that the procedure may be fine-tuned to meet the unique cutting requirements of carbon fibre.

Carbon Fiber

Carbon fiber is known for its wonderful strength-to-weight ratio. It is composed of thin strands of tightly bonded carbon atoms. Carbon fiber is typically woven into fabrics or combined with resins to create composite materials. These composites are molded into lightweight yet incredibly strong structures, offering significant advantages over traditional materials like steel and aluminum.

One of carbon fiber’s key properties is its strength, which is comparable to steel’s while being much lighter. This combination of strength and lightness allows engineers and designers to create durable and efficient components. Reducing an aircraft’s weight by using carbon fiber components can lead to fuel savings and increased payload capacity in the aerospace industry.

Carbon fiber is also known for its corrosion resistance and ability to withstand high temperatures. These properties make it ideal for use in environments where durability and longevity are essential. However, despite these advantages, carbon fiber presents unique challenges in machining. Its abrasive nature can lead to rapid tool wear, and improper cutting causes issues such as delamination or fraying, compromising the material’s structural integrity.

Tips for CNC Router Cutting Carbon Fiber

Below are the top tips for efficiently using a CNC router to cut carbon fiber to meet your desired needs:

Right Tooling

One of the most important components of cutting carbon fibre is choosing the right tools. Because of the material’s abrasive nature, typical cutting tools can wear out fast, resulting in poor cut quality and higher expenses. For optimal results, utilise diamond-coated or carbide-tipped end mills that are specifically engineered to handle carbon fiber’s hardness. These instruments are more durable and can keep their sharp edges for extended periods of time.

Optimize Cutting Speeds and Feed Rates

Setting the proper cutting speed and feed rate is essential for avoiding overheating and material damage. When working with carbon fiber, slower cutting speeds and greater feed rates are recommended. This reduces heat accumulation, which can lead to resin melting. Adjusting these parameters according to the thickness and kind of carbon fiber being cut will aid in preserving both the material and the cutting tool.

Implement Proper Fixturing

Securing the carbon fiber material firmly in place is essential to achieving a precise cut. Any movement during cutting can cause inaccuracies and defects like frayed edges or uneven cuts. Use strong, reliable fixturing methods to steady the material, ensuring the CNC machining router can follow the programmed tool path without deviation.

Control Dust and Debris

Carbon fiber dust is not only abrasive but also dangerous to health. Therefore, effective dust extraction and containment are critical when cutting carbon fiber. Ensure your CNC router has a high-efficiency dust collection system to capture airborne particles and keep the workspace clean. Additionally, wearing the right personal protective equipment (PPE), such as masks and gloves, is recommended to protect against inhalation or skin contact.

Perform Test Cuts

Before committing to a full production run, it is wise to perform test cuts on a scrap piece of carbon fiber. This allows you to fine-tune your cutting parameters, like speed, feed rate, and depth of cut, ensuring that the process is optimized for the specific material you are working with. Test cuts also help identify potential issues, such as tool wear. Thereby, allowing for adjustments before starting the final project.

Advantages of CNC Router for Carbon Fiber Cutting

Here are some of the main benefits of using a CNC router to cut your carbon fiber:

Precision and Accuracy

One of the most significant benefits of using a CNC router parts for carbon fibre cutting is the machine’s ability to produce high precision and accuracy. CNC routers are computer-controlled, enabling for the precise execution of elaborate and sophisticated designs. This level of precision is essential when working with carbon fibre, as slight flaws can jeopardise the material’s integrity. The CNC router’s ability to maintain tight tolerances guarantees that each cut is clean and precise, lowering the possibility of problems like frayed edges or uneven surfaces.

Versatility and Flexibility

CNC routers are versatile machines that work with a variety of materials, including carbon fibre. This versatility makes them an excellent choice for manufacturers who work with various materials and require a machine that can adapt to changing cutting requirements. CNC routers may be designed to handle a variety of thicknesses, forms, and designs. It enables several applications, from simple cuts to complex patterns. This versatility is critical in areas where customised carbon fibre components are required.

Efficiency and Speed

CNC routers are built for efficiency, cutting complicated patterns swiftly and with little waste. Once the cutting parameters and tool paths are configured, the CNC router can complete the task with minimal operator intervention, resulting in faster production times. This efficiency is useful when working with carbon fibre, as the material’s hardness can make manual cutting laborious and time-consuming. CNC routers minimise manufacturing time by automating the process while ensuring high-quality results.

Reproducibility

Consistency is essential in manufacturing, especially when making several similar items. CNC routers thrive in this field because they can precisely execute the same design repeatedly. This consistency is critical when cutting carbon fibre components that must meet exacting standards. Whether creating small batches or large-scale runs, a CNC router guarantees that each item is cut to the same standard, eliminating the need for rework and ensuring consistency across all CNC router parts.

Cost-Effectiveness

While the first investment in a CNC router can be significant, the long-term cost benefits make it an affordable choice for cutting carbon fibre. The precision and efficiency of CNC routers minimise material waste and tool wear, resulting in cheaper long-term operational expenses. Furthermore, automating the cutting process lowers labor costs and enhances production, making it more cost-effective to use a CNC router services for carbon fiber.

Conclusion

Cutting carbon fiber presents unique challenges due to its strength, abrasiveness, and potential for material damage. However, with the right approach, a CNC router can be a powerful tool for this task. CNC routers provide a cost-effective and reliable solution for working with this advanced material. By selecting appropriate tooling, optimizing cutting parameters, and implementing proper cooling and dust management techniques, manufacturers can achieve clean, precise cuts that preserve the integrity of the carbon fiber.
