Tack welding is an essential technique used in metal fabrication to hold parts in place before final welding temporarily. These small, temporary welds ensure the components are correctly aligned, thus preventing any movement or distortion during welding. Tack welding is vital in many welding operations because it maintains the integrity and accuracy of the final weld.
This comprehensive article will explore the three main types of tack welding and their specific applications in different welding needs.
What Is a Tack Weld?

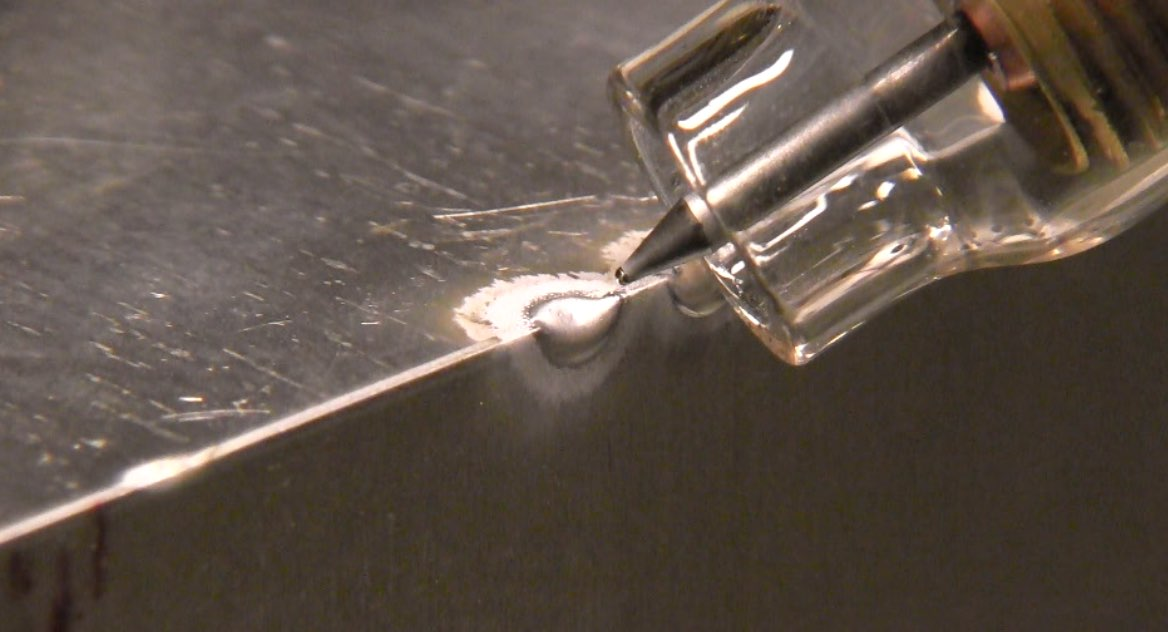

What is Tack weld is a common question many welding enthusiast want to know. Tack welding is a temporary procedure using low heat and a brief arc to join metal parts before final welding. It makes welding easier by preventing metal pieces from moving before completing the sheet metal welding process. Welding to specs is only possible with this technique, and it would be challenging to weld precisely.
It aims to secure the components so they are welded in place. This helps to keep the placement, distance, and alignment consistent until the final welding. Tack welds, or short welds, serve as fixings while assembling workpieces. It also needs to be hard enough to withstand significant strains. This welding method can make various products, including shoes, metal boots, and pipes.
3 Types of Tack Welds
Tack welding is not a one-size-fits-all method. Different applications require different types of tack welds. Understanding the several types can help you choose the best technique for the project. There are three significant types of tack welds:
Standard Tack Weld

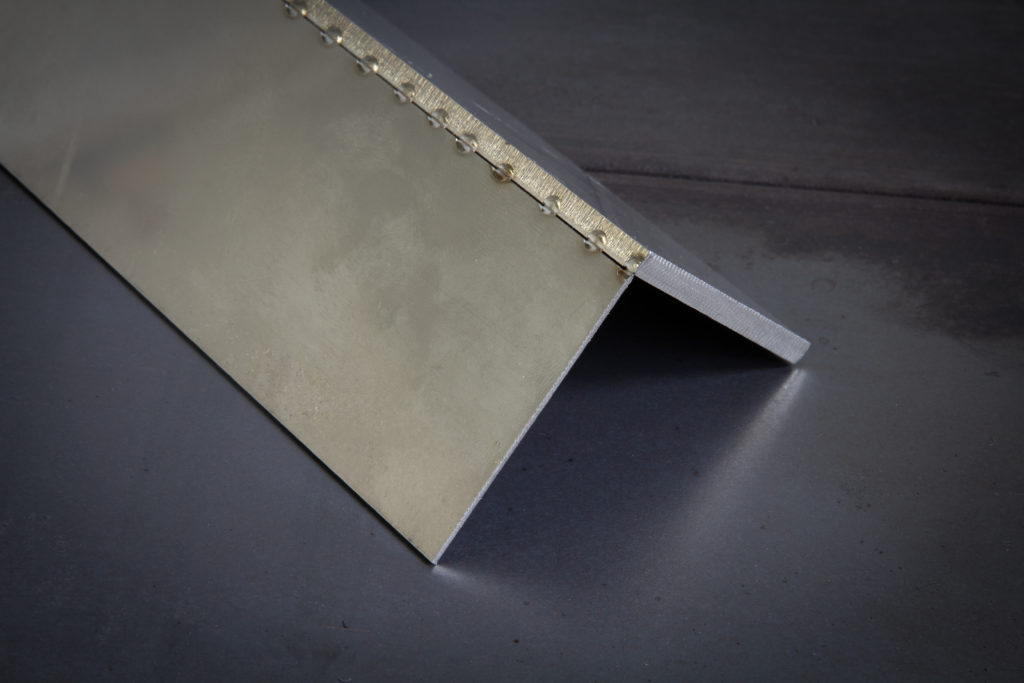

The standard tack weld is the most popular type of tack welding. It is valued for its ease of use and effectiveness in temporarily keeping metal components together. This weld includes making small, regularly spaced welds along a joint to keep it aligned until the final welding pass is performed. It is beneficial in cases where the metal pieces are already well-aligned and require little force to stay in place.
One of the primary benefits of the standard tack weld is its simplicity of application. It can be applied rapidly without any preparation, making it an excellent solution for simple and complex welding operations. The small size of these welds introduces little heat into the material, lowering the possibility of distortion, which is especially significant when working with thinner metals.
Despite its simplicity, the standard tack weld is quite adaptable and can be utilized with various welding methods, including MIG, TIG, and stick welding. The key to suitable standard tack welding is maintaining constant spacing and weld size. This guarantees that the components are properly attached without interfering with the final weld.
Bridge Tack Weld
The bridge tack weld is essential for joining metal parts with gaps. Unlike the standard tack weld, it is intended to span gaps and stabilise parts that cannot be fully aligned prior to final welding. This method is commonly used when metal components cannot touch due to warping, uneven forms, or design constraints.
This technique is especially useful in custom fabrication and repair work, where precise alignment is difficult, and materials may have natural fluctuations. The welder carefully applies a weld bead across the gap, ensuring that both sides are securely connected. This procedure requires a steady hand and exact control since the weld must be strong enough to keep the components together without causing excessive buildup that could interfere with the final weld.
One key benefit of the bridge tack weld is its ability to keep an assembly together even when working with poor joints. The welder can use a bridge tack weld to temporarily stabilise the pieces, limiting movement that could cause misalignment during the final welding run. This procedure secures the components, allowing for a clean and effective final weld.
However, a bridge tack weld requires more skill than a standard tack weld. Care must be taken with heat management and placement to avoid developing weak places or stress in the material. When done correctly, the bridge tack weld is a great tool for managing complex projects, allowing welders to make strong, solid connections even in difficult settings.
Hot Tack Weld
Hot tack welding is used when materials are prone to considerable deformation or when speed is crucial. This type of tack weld uses greater temperatures to form a stronger, more rapid bond between metal components. The greater heat input allows the weld to penetrate deeper and fuse the materials more securely, making hot tack welding especially useful in high-strength metals or when working with materials that are difficult to combine using normal procedures.
Hot tack welding is beneficial in areas that require rapid production, such as pipeline building or heavy structural welding. The ability to instantly create a strong grip minimizes the possibility of pieces slipping during welding, ensuring that the final assembly is exact and aligned. This procedure is also applicable when working with thicker materials, which require more energy to achieve a secure tack weld.
However, the hot tack weld must be carefully controlled to avoid overheating, which can result in excessive warping or metal weakness. Welders must be proficient at regulating heat input to avoid harming the material while maintaining the desired strength. Proper technique is essential because too much heat might cause the tack weld to grow too large, potentially interfering with the final weld.
The hot tack weld is an effective technique for creating solid and quick connections in difficult welding circumstances. While it takes greater skill and careful heat management, it offers substantial advantages in terms of speed and strength, making it a vital technique for welders working with challenges.
Contrast Table
The following table compares the three types of tack welds, highlighting their key characteristics, applications, and considerations.
| Features | Standard Tack Weld | Bridge Tack Weld | Hot Track Weld |
| Purpose | To temporarily hold aligned metal pieces together | To span and stabilize gaps between misaligned pieces | To quickly establish a strong bond with higher heat |
| Application | Common in most welding tasks where parts are well-aligned | Used in custom fabrication, repair, or where gaps exist | Ideal for high-strength materials and rapid production |
| Heat Input | Low, to avoid distortion | Moderate, enough to span gaps but not cause stress | High, to create a quick, deep bond |
| Skill Level Required | Basic to intermediate | Intermediate to advanced | Advanced, requires precise heat control |
| Risk of Distortion | Low, due to minimal heat | Moderate, depends on gap size and material | High, if heat is not carefully managed |
| Final Weld Interference | Minimal, requires little to no cleanup | Possible, if the gap is large or weld is too prominent | Potentially significant, if the weld is too large |
Conclusion
Understanding the three types of tack welds; Standard, Bridge, and Hot helps you choose the best technique for each welding assignment. Each type has a distinct function and is best suited to a certain situation, ranging from the simple application of the Standard Tack Weld to the specialised bridging of gaps with the Bridge Tack Weld and the high-heat strength of the Hot Tack Weld.
By mastering these techniques, welders can ensure greater accuracy and stability in their projects, reducing the risk of misalignment and distortion. Choosing the right tack weld technique not just improves the efficiency of the process but also enhances the overall quality of the final weld. As with any welding technique, careful application and skillful control are essential to achieving optimal results and maintaining the integrity of the welded components.
